DEFCON 33 CTF Write-Up Series #3: dialects (pwn)

Written by Junhyun Song

dialects

Reverse First!

statically linked, stripped binary šŸ¤®

> file ctf
ctf: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), statically linked, stripped

Letā€™s start by repairing the stripped symbols.

FLIRT

The author also gave us libc.a and libstdc++.a with the challenge. Couldnā€™t we just extract the symbols from this files and apply them? Yes, you can with FLIRT.

So, what is FLIRT and how does it work? FLIRT was created by Hex-Rays to separate library functions from programs. To solve this problem, Hex-Rays first creates a signature of the function from the library. It then compares the signature of the function you use in your program with the signature of the pre-created library function. If the two signatures are the same, we can assume that the two functions are also the same. For a more detailed explanation, see the official documentation

btw, how do I create a signature file and apply it to my program?

Try these:

# create signature files
/path/to/IDA/tools/flair/pelf libc.a libc.pat
/path/to/IDA/tools/flair/makesig libc.pat libc.sig
# fix libc.exc
/path/to/IDA/tools/flair/makesig libc.pat libc.sig

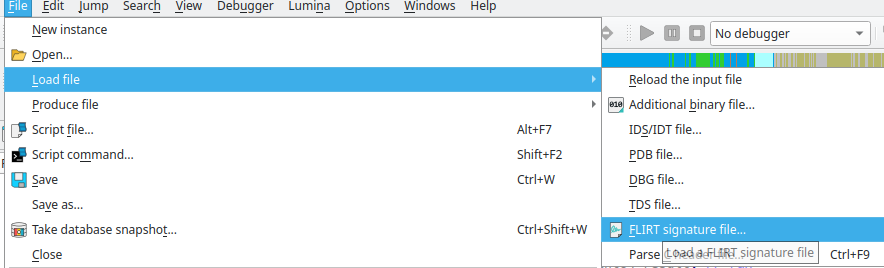

Load the signature file from File > Load file > FLIRT signature file... load signature

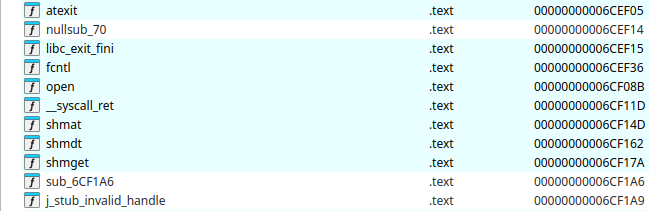

Now we have recovered the libc symbol! load libc

The signature for the other library was obtained by my teammate howdays using lib{ssl,crypto}.so. Looks even better! load all

So how do I get the flag šŸ˜…

It easy to understand what the program is doing. The program uses stdio to communicate over the SSL protocol.

int __fastcall main(int argc, const char **argv, const char **envp)
{
  __int64 v3; // rbp
  _DWORD *v4; // rbp

  signal(0xDu, 1);
  v3 = sub_400676(13);
  sub_4006A4(v3);
  alarm(0xAu);
  v4 = (_DWORD *)SSL_new(v3);
  SSL_set_rfd(v4, 0);
  SSL_set_wfd(v4, 1);
  if ( (int)SSL_accept((__int64)v4) > 0 )
    return sub_40027D((__int64)v4);
  else
    return sub_4A00C6(0xA6E340);
}

And the core of the program is implemented in sub_40027D.

1 . The execution flow depends on taking a 4-byte input and encrypting it with an SM4 cipher.

2-1. if the result of sm4 encryption is 1, check that we gave the correct input in 2-2. and check if the result of strcmp(SHA512(sm4_encrypt(ctx, random 16 bytes | user input 16 bytes), byte_6E1000)) is true. If it is true, we can read the random file.

2-2. if the result of sm4 encryption is 2, check if the result of memcmp(sm3_digest(ctx, sm4_encrypt(ctx, random 16 bytes | user input 16 bytes), 32), ā€œ\x00\x00\x00ā€, 3) is true.

So we can solve 2-2 first, and then 2-1 to read /flag, right?

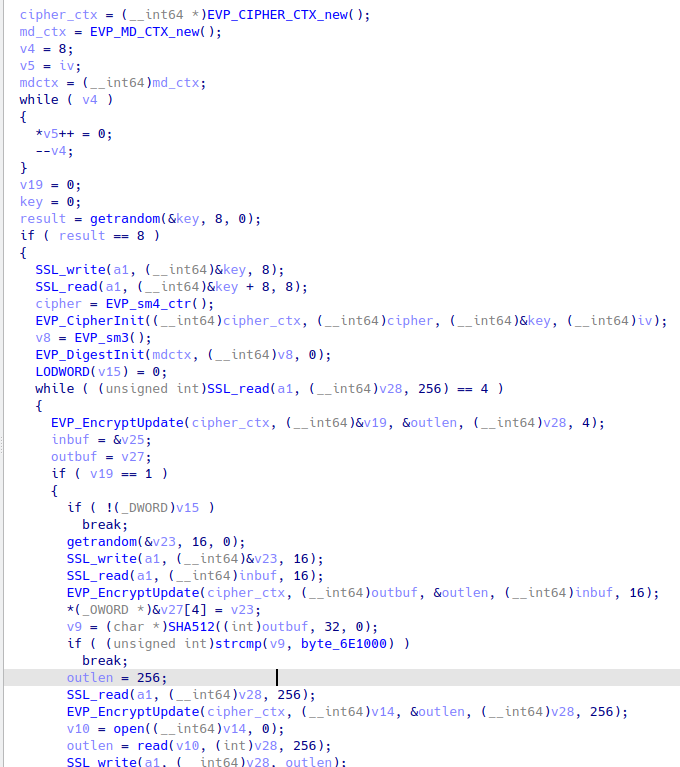

__int64 __fastcall sub_40027D(__int64 a1)
{
 // ...

  cipher_ctx = (__int64 *)EVP_CIPHER_CTX_new();
  md_ctx = EVP_MD_CTX_new();
  v4 = 8;
  v5 = iv;
  mdctx = (__int64)md_ctx;
  while ( v4 )
  {
    *v5++ = 0;
    --v4;
  }
  v19 = 0;
  key = 0;
  result = getrandom(&key, 8, 0);
  if ( result == 8 )
  {
    SSL_write(a1, (__int64)&key, 8);
    SSL_read(a1, (__int64)&key + 8, 8);
    cipher = EVP_sm4_ctr();
    EVP_CipherInit((__int64)cipher_ctx, (__int64)cipher, (__int64)&key, (__int64)iv);
    v8 = EVP_sm3();
    EVP_DigestInit(mdctx, (__int64)v8, 0);
    LODWORD(v15) = 0;
    while ( (unsigned int)SSL_read(a1, (__int64)v28, 256) == 4 )
    {
      EVP_EncryptUpdate(cipher_ctx, (__int64)&v19, &outlen, (__int64)v28, 4);
      inbuf = &v25;
      outbuf = v27;
      if ( v19 == 1 )
      {
        if ( !(_DWORD)v15 )
          break;
        getrandom(&v23, 16, 0);
        SSL_write(a1, (__int64)&v23, 16);
        SSL_read(a1, (__int64)inbuf, 16);
        EVP_EncryptUpdate(cipher_ctx, (__int64)outbuf, &outlen, (__int64)inbuf, 16);
        *(_OWORD *)&v27[4] = v23;
        v9 = (char *)SHA512((int)outbuf, 32, 0);
        if ( (unsigned int)strcmp(v9, byte_6E1000) )
          break;
        outlen = 256;
        SSL_read(a1, (__int64)v28, 256);
        EVP_EncryptUpdate(cipher_ctx, (__int64)v14, &outlen, (__int64)v28, 256);
        v10 = open((__int64)v14, 0);
        outlen = read(v10, (int)v28, 256);
        SSL_write(a1, (__int64)v28, outlen);
      }
      else
      {
        if ( v19 != 2 )
          break;
        v11 = outbuf;
        for ( i = 16; i; --i )
          *v11++ = 0;
        v15 = &v22;
        getrandom(&v22, 16, 0);
        SSL_write(a1, (__int64)v15, 16);
        v23 = 0;
        SSL_read(a1, (__int64)&v23, 16);
        v26 = v22;
        EVP_EncryptUpdate(cipher_ctx, (__int64)inbuf, &outlen, (__int64)&v23, 16);
        EVP_DigestUpdate(mdctx, inbuf, 32);
        EVP_DigestFinal_ex(mdctx, outbuf, 0);
        if ( BYTE2(v27[0]) | (unsigned __int8)(BYTE1(v27[0]) | LOBYTE(v27[0])) )
        {
          v13 = 2;
          goto LABEL_19;
        }
      }
      LODWORD(v15) = 1;
    }
    v13 = 0;
LABEL_19:
    exit(v13);
  }
  return result;
}

Custom cipher?

I thought it would be easy to just code using the openssl library, but the implementation of sm3 and sm4 was a bit weird. However, I donā€™t know how much the author changed anything, so instead of trying to find all the differences, I decided to use the authorā€™s implementations of SM3 and SM4.

Since itā€™s a statically linked binary, you can use the functions in the binary as is, as long as you map the addresses correctly.

Here is an example.

#define PROB_PATH "./ctf"
#define PROB_BASE (void *)(0x400000)
#define PROB_DATA_BASE (void *)(0xa67000)

void *(*SHA512)(void *, int, int) = (typeof(SHA512))(0x4DC76A);

void hexdump(void *mem, unsigned int len);
void fatal(const char *msg);

void *map_prob(void)
{
    int fd;
    size_t prob_size;
    void *prob_base;
    void *prob_data_base;

    fd = open(PROB_PATH, O_RDONLY);
    if (fd < 0)
        fatal("open");

    prob_size = lseek(fd, 0, SEEK_END);
    lseek(fd, 0, SEEK_SET);

    prob_base = mmap(PROB_BASE, prob_size, PROT_READ | PROT_WRITE | PROT_EXEC, MAP_PRIVATE | MAP_FIXED_NOREPLACE, fd, 0);
    if (prob_base == MAP_FAILED)
        fatal("mmap");

    prob_data_base = mmap(PROB_DATA_BASE, 0xc000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_FIXED_NOREPLACE | MAP_ANON, -1, 0);
    if (prob_data_base == MAP_FAILED)
        fatal("mmap");

    memcpy((char *)prob_data_base + 0x1000, (char *)prob_base + 0x468000, 0x6558);

    close(fd);

    return prob_base;
}

void test(void)
{
    char *sha512_out;
    char hash_input[0x20];

    memset(hash_input, 'A', 0x20);

    sha512_out = SHA512(hash_input, 0x20, 0);

    hexdump(sha512_out, 0x20);
}

int main(int argc, char *argv[], char *envp[])
{
    void *prob_base;

    setbuf(stdin, NULL);
    setbuf(stdout, NULL);
    setbuf(stderr, NULL);

    prob_base = map_prob();

    test();

    return 0;
}

segmentation fault? Whatā€™s wrong?

> ./test
[2]    1547625 segmentation fault (core dumped)  ./test

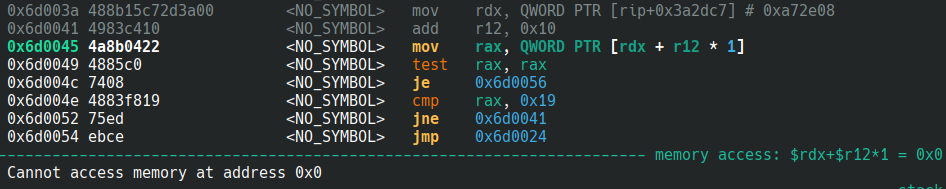

Looks like we need to fill 0xa72e08 with the correct value. segfault

and that correct value is the end address of the envp.

__int64 __fastcall _init_libc(__int64 envp, __int64 a2)
{
  v2 = 0;
  qword_A72AF8 = envp;
  memset(v14, 0, 0x130u);
  while ( *(_QWORD *)(envp + 8 * v2++) )
    ;
  v4 = (unsigned __int64 *)(envp + 8 * v2);
  qword_A72E08 = (__int64)v4;

  // ...
}

Now itā€™s working great!

> ./test
0x000000: ac 80 04 71 de 52 f7 4e 8d 32 32 37 b1 b9 13 ca ...q.R.N.227....
0x000010: 28 bc 0f 46 f2 6b 88 f8 b2 5e 25 e7 33 c1 a6 08 (..F.k...^%.3...

So now all we need to do is implement it and we get the flag

Solve 2-2.

  1. sm4_decrypt \x02\x00\x00\x00 with the key we got from the problem server, so we can change the execution flow to 2-2.

  2. find the N where the result of sm3_digest(N) is \x00\x00\x00\x??... using brute-force, and sm4_decrypt the value to solve 2-2.

Solve 2-1.

  1. sm4_decrypt \x01\x00\x00\x00 with the key we got from the problem server, so we can change the execution flow to 2-1.

  2. find the N where the result of SHA512(N) is \x8d\x36\x00\x??... using brute-force, and sm4_decrypt the value to solve 2-1. (because byte_6E1000 is \x8d\x36\x00...)

Hereā€™s the complete code I used

// gcc -o test test.c
#include <stdio.h>
#include <unistd.h>
#include <fcntl.h>
#include <stdlib.h>
#include <ctype.h>
#include <string.h>
#include <sys/mman.h>

#define PROB_PATH "./ctf"
#define PROB_BASE (void *)(0x400000)
#define PROB_DATA_BASE (void *)(0xa67000)

#ifndef HEXDUMP_COLS
#define HEXDUMP_COLS 16
#endif

void *(*EVP_MD_CTX_new)(void) = (typeof(EVP_MD_CTX_new))(0x4A1B50);
void *(*EVP_CIPHER_CTX_new)(void) = (typeof(EVP_CIPHER_CTX_new))(0x4A3932);
void (*EVP_EncryptInit)(void *, void *, void *, void *) = (typeof(EVP_EncryptInit))(0x4A619D);
void (*EVP_EncryptUpdate)(void *, void *, void *, void *, int) = (typeof(EVP_EncryptUpdate))(0x4A3DDA);
void (*EVP_DecryptInit)(void *, void *, void *, void *) = (typeof(EVP_DecryptInit))(0x4A61A5);
void (*EVP_DecryptUpdate)(void *, void *, void *, void *, int) = (typeof(EVP_DecryptUpdate))(0x4A413A);
void (*EVP_DigestInit_ex)(void *, void *, int) = (typeof(EVP_DigestInit_ex))(0x4A2AE1);
void (*EVP_DigestUpdate)(void *, void *, int) = (typeof(EVP_DigestUpdate))(0x4A1BD1);
void (*EVP_DigestFinal_ex)(void *, void *, int) = (typeof(EVP_DigestFinal_ex))(0x4A1CAE);
void *(*EVP_sm4_ctr)(void) = (typeof(EVP_sm4_ctr))(0x4A37E4);
void *(*EVP_sm3)(void) = (typeof(EVP_sm3))(0x4DDB2D);
void *(*SHA512)(void *, int, int) = (typeof(SHA512))(0x4DC76A);

void fatal(const char *msg)
{
    perror(msg);
    exit(EXIT_FAILURE);
}

void hexdump(void *mem, unsigned int len)
{
    unsigned int i, j;

    for (i = 0; i < len + ((len % HEXDUMP_COLS) ? (HEXDUMP_COLS - len % HEXDUMP_COLS) : 0); i++) {
        /* print offset */
        if (i % HEXDUMP_COLS == 0)
            printf("0x%06x: ", i);

        /* print hex data */
        if (i < len)
            printf("%02x ", 0xFF & ((char*)mem)[i]);
        else /* end of block, just aligning for ASCII dump */
            printf("   ");

        /* print ASCII dump */
        if (i % HEXDUMP_COLS == (HEXDUMP_COLS - 1)) {
            for(j = i - (HEXDUMP_COLS - 1); j <= i; j++) {
                if(j >= len) /* end of block, not really printing */
                    putchar(' ');
                else if(isprint(((char*)mem)[j])) /* printable char */
                    putchar(0xFF & ((char*)mem)[j]);
                else /* other char */
                    putchar('.');
            }
            putchar('\n');
        }
    }
}

void *map_prob(void)
{
    int fd;
    size_t prob_size;
    void *prob_base;
    void *prob_data_base;

    fd = open(PROB_PATH, O_RDONLY);
    if (fd < 0)
        fatal("open");

    prob_size = lseek(fd, 0, SEEK_END);
    lseek(fd, 0, SEEK_SET);

    prob_base = mmap(PROB_BASE, prob_size, PROT_READ | PROT_WRITE | PROT_EXEC, MAP_PRIVATE | MAP_FIXED_NOREPLACE, fd, 0);
    if (prob_base == MAP_FAILED)
        fatal("mmap");

    prob_data_base = mmap(PROB_DATA_BASE, 0xc000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_FIXED_NOREPLACE | MAP_ANON, -1, 0);
    if (prob_data_base == MAP_FAILED)
        fatal("mmap");

    memcpy((char *)prob_data_base + 0x1000, (char *)prob_base + 0x468000, 0x6558);

    close(fd);

    return prob_base;
}

void solve_main(void)
{
    void *md_ctx;
    void *cipher_ctx;
    char key[16];
    char iv[16];
    char ciphertext[0x100];
    char plaintext[0x100];
    int out_num;

    cipher_ctx = EVP_CIPHER_CTX_new();

    puts("[+] round 1");

    printf("key: ");
    read(STDIN_FILENO, key, sizeof(key));
    memset(iv, 0, sizeof(iv));
    EVP_DecryptInit(cipher_ctx, EVP_sm4_ctr(), key, iv);

    memset(ciphertext, 0, sizeof(ciphertext));
    *(int *)ciphertext = 2;
    EVP_DecryptUpdate(cipher_ctx, plaintext, &out_num, ciphertext, 4);
    printf("answer: ");
    write(STDOUT_FILENO, plaintext, 4);
    puts("");

    puts("[+] round 2");
    printf("input_16: ");
    char input_16[0x10];

    read(STDIN_FILENO, input_16, sizeof(input_16));

    size_t i;
    char hash_input[0x20];
    char hash_output[0x20];
    memset(hash_input, 0, sizeof(hash_input));
    memcpy(hash_input + 0x10, input_16, sizeof(input_16));
    while (1) {
        md_ctx = EVP_MD_CTX_new();
        EVP_DigestInit_ex(md_ctx, EVP_sm3(), 0);

        *(size_t *)hash_input = i;

        EVP_DigestUpdate(md_ctx, hash_input, 0x20);
        EVP_DigestFinal_ex(md_ctx, hash_output, 0);
        if (!(hash_output[0] | hash_output[1] | hash_output[2]))
            break;

        i++;
    }

    printf("hash_input: %ld\n", i);

    memset(ciphertext, 0, sizeof(ciphertext));
    *(size_t *)ciphertext = i;
    EVP_DecryptUpdate(cipher_ctx, plaintext, &out_num, ciphertext, 0x10);
    printf("answer: ");
    write(STDOUT_FILENO, plaintext, 0x10);
    puts("");

    puts("[+] round 3");
    memset(ciphertext, 0, sizeof(ciphertext));
    *(int *)ciphertext = 1;
    EVP_DecryptUpdate(cipher_ctx, plaintext, &out_num, ciphertext, 4);
    printf("answer: ");
    write(STDOUT_FILENO, plaintext, 4);
    puts("");

    puts("[+] round 4");
    printf("input_16: ");

    read(STDIN_FILENO, input_16, sizeof(input_16));

    i = 0;

    memset(hash_input, 0, sizeof(hash_input));
    memcpy(hash_input + 0x10, input_16, sizeof(input_16));

    char *sha512_out;
    while (1) {
        *(size_t *)hash_input = i;

        sha512_out = SHA512(hash_input, 0x20, 0);

        if (!memcmp(sha512_out, "\x8d\x36\x00", 3))
            break;

        i++;
    }

    printf("hash_input: %ld\n", i);

    memset(ciphertext, 0, sizeof(ciphertext));
    *(size_t *)ciphertext = i;
    EVP_DecryptUpdate(cipher_ctx, plaintext, &out_num, ciphertext, 0x10);
    printf("answer: ");
    write(STDOUT_FILENO, plaintext, 0x10);
    puts("");

    puts("[+] round 5");
    memset(ciphertext, 0, sizeof(ciphertext));
    strcpy(ciphertext, "/flag");

    EVP_DecryptUpdate(cipher_ctx, plaintext, &out_num, ciphertext, 256);
    printf("answer: ");
    write(STDOUT_FILENO, plaintext, 256);
    puts("");
}

void test(void)
{
    char *sha512_out;
    char hash_input[0x20];

    memset(hash_input, 'A', 0x20);

    sha512_out = SHA512(hash_input, 0x20, 0);

    hexdump(sha512_out, 0x20);
}

int main(int argc, char *argv[], char *envp[])
{
    void *prob_base;

    setbuf(stdin, NULL);
    setbuf(stdout, NULL);
    setbuf(stderr, NULL);

    prob_base = map_prob();

    int count = 0;
    while ( envp[count++])
        ;
    *(unsigned long *)(0xA72E08) = (unsigned long)&envp[count];

    solve_main();

    _exit(0);

    return 0;
}

import socket
import ssl
from pwn import *
import os

context.arch = "amd64"
context.terminal = ["sudo", "konsole", "-e", "zsh", "-c"]

if args.REMOTE:
    HOST = "dialects-7qpig3ofzdmyi.shellweplayaga.me"
    PORT = 4433
    TICKET = "ticket{~~~}"
else:
    HOST = "localhost"
    PORT = 8080
    os.system("sudo pkill ctf")
    os.system("pkill socat")
    os.system("socat TCP-LISTEN:8080,reuseaddr,fork EXEC:./ctf,stderr &")

p = process("./test")

context = ssl.SSLContext(ssl.PROTOCOL_TLS_CLIENT)
context.minimum_version = ssl.TLSVersion.TLSv1_3
context.maximum_version = ssl.TLSVersion.TLSv1_3

context.check_hostname = False
context.verify_mode = ssl.CERT_NONE

with socket.create_connection((HOST, PORT)) as sock:
    if args.REMOTE:
        sock.recv(15)
        sock.send(TICKET.encode() + b"\n")

    with context.wrap_socket(sock, server_hostname=HOST) as ssock:
        key = ssock.recv(8)

        ssock.send(b'a'*8)

        final_key = key + b'a'*8

        log.info("final_key: %s", final_key.hex())
        p.sendafter(b"key: ", final_key)
        p.recvuntil(b"answer: ")
        answer = p.recvn(4)
        ssock.send(answer)

        input_16 = ssock.recv(16)
        log.info("input_16: %s", input_16.hex())

        p.sendafter(b"input_16: ", input_16)

        p.recvuntil(b"answer: ")
        answer = p.recvn(16)
        ssock.send(answer)

        p.recvuntil(b"answer: ")
        answer = p.recvn(4)
        ssock.send(answer)

        input_16 = ssock.recv(16)
        log.info("input_16: %s", input_16.hex())

        p.sendafter(b"input_16: ", input_16)

        p.recvuntil(b"answer: ")
        answer = p.recvn(16)
        ssock.send(answer)

        p.recvuntil(b"answer: ")
        answer = p.recvn(256)
        ssock.send(answer)

        flag = ssock.recv(256)
        log.info("flag: %s", flag.decode())

        p.interactive()

Reverse DEFCON FLIRT OpenSSL
