Hello, I’m Seohyun Jang, also known as d1n0.
In this post I’ll share my write‑up for the im‑pio‑sible challenge, one of the challenges I solved in this year’s DEFCON CTF qualifiers.

terms

The challenge is based on a custom PIO system written by the authors. To make the explanation clearer, I’ll start by summarizing a few key terms of this PIO model.

• State Machines execute the instruction at their PC every tick, one after another.
• The supported instructions are Jmp, Wait, In, Out, Pull, Push, Mov, Irq, and Set.
  Each instruction can include a sideset field that either inserts an extra delay or sets a value on a GPIO pins.
• Every State Machine owns these memory areas:
  • Output Shift Register (OSR)
    Filled by Out and Pull; also accessible with Mov or Set.
    The out_shiftdir flag selects the shift‑in direction for Out.
  • Input Shift Register (ISR)
    Filled by In and Push; likewise accessible with Mov or Set.
    The in_shiftdir flag selects the shift‑in direction for In.
  • Shift Counters (OSC / ISC)
    Count the number of bits shifted through OSR/ISR and are mainly used to trigger autopull or autopush.
  • Scratch X, Scratch Y: general temporary registers, also used as loop counters by Jmp.
  • TX FIFO: values written by Push are placed here.
  • RX FIFO: Pull reads values from here.
• GPIO
  Can be used by In, Out, Mov, or via sideset.
  If share_pins is true, all State Machines share the same GPIO pins.

For details not covered here, please consult the Swift source code shipped with the problem.

im‑pio‑sible

The challenge provided a single transmitter State Machine.
Our task is to build a receiver State Machine that runs concurrently, recovers each value the transmitter pops from its TX queue, and then pushes that value to our TX queue.

The transmitter’s TX FIFO is wired to the receiver’s RX FIFO. And the receiver may also watch any GPIO activity driven by the transmitter if share_pins option is true.

There are three transmitter variants—level 1, level 2, and level 3—but during the CTF I only implemented a receiver for level 3.
Special thanks to the Cold Fusion members deayzl and Aplace, who solved levels 1 and 2 and explained the challenge in detail.

Because this write‑up aims to be complete, I will still present solutions for levels 1 and 2. I have cleaned up the explanations slightly, so they may differ from the code we actually ran during the contest.

Level 1

gpio_pins: 2
gpio_pindir: 2
out_shiftdir: true
pull_thresh: 32
auto_pull: false
out_base: 0
side_base: 1
sideset_count: 2
side_en: true
share_pins: true

PULL if_empty=0, block=1; sideset=31;
SET dest=1, data=15; sideset=23;
OUT GPIO (1); sideset=30;
JMP X-- > 0 ? 2; sideset=17;

level1.json performs these steps:

1. Pull one word from TX FIFO.
2. Load 15 into scratch X.
3. Shift one bit from OSR out to GPIO.
4. If X > 0, jump back to step 2; otherwise, jump to step 0. X is decremented just before the jump.

When the transmitter executes the Out, the receiver must execute an In, but only after the Out fires.
Because Out is issued with sideset 30, GPIO shows 1 1 [out‑bit] right after the instruction.
By first clearing GPIO and waiting until pin 1 goes high, the receiver can detect that exact moment.

After the transmitter finishes its loop it restarts from the beginning.
To stay in sync, the receiver waits until the transmitter runs its Jmp (sideset 17 clears pin 1).

With push_thresh = 16 and autopush = true, the receiver’s OSC hits the threshold at the end of each inner loop, automatically pushing the reconstructed word.

share_pins: true
in_shiftdir: true
autopush: true
push_thresh: 16

SET dest=0, data=0; sideset=0;
WAIT idx=1, src=0, pol=1; sideset=0;
SET dest=1, data=15; sideset=0;
SET dest=0, data=0; sideset=0;
WAIT idx=1, src=0, pol=1; sideset=0;
GPIO |> ISR (1); sideset=0;
JMP X-- > 0 ? 3; sideset=0;
WAIT idx=1, src=0, pol=0; sideset=0;
JMP TRUE ? 0; sideset=0;

Level 2

push_thresh: 32
set_base: 14
share_pins: true

PULL if_empty=0, block=1; sideset=0;
MOV X <- OSR; sideset=0;
MOV ISR <- OSR; sideset=0;
PUSH if_full=0, block=0; sideset=0;
PULL if_empty=0, block=1; sideset=0;
MOV Y <- OSR; sideset=0;
JMP TRUE ? 8; sideset=0;
JMP X-- > 0 ? 8; sideset=0;
JMP Y-- > 0 ? 7; sideset=0;
MOV INVERT ISR <- X; sideset=0;
PUSH if_full=0, block=0; sideset=0;
SET dest=0, data=1; sideset=0;
WAIT idx=14, src=0, pol=0; sideset=0;

level2.json does the following:

1. Pull word A.
2. Copy OSR into scratch X.
3. Copy OSR into ISR.
4. Push ISR (→ sends A).
5. Pull word B into OSR.
6. Store OSR in scratch Y.
7. Jump to step 8.
8. If X != 0, decrement X and jump to step 8.
9. If Y != 0, decrement Y and jump to step 7.
10. Store ~X in ISR.
11. Push ISR (→ sends ~(A − B)).
12. Using set_base = 14, set GPIO 14 high (stop bit).
13. Wait until GPIO 14 returns to 0.

Thus the transmitter reads A, B and outputs A followed by ~(A − B).

Given A and ~(A − B), the receiver can recover both numbers.
By exploiting the same Jmp X--/Jmp Y-- trick used by the transmitter—compute (A‑B) − A − 1, invert—we recover B.

After both pushes, the receiver clears GPIO 14 so that the transmitter can continue.

set_base: 14
share_pins: true

PULL if_empty=0, block=1; sideset=0;
MOV X <- OSR; sideset=0;
PULL if_empty=0, block=1; sideset=0;
MOV Y <- OSR; sideset=0;

MOV ISR <- X; sideset=0;
PUSH if_full=0, block=0; sideset=0;

MOV INVERT Y <- Y; sideset=0;
JMP Y-- > 0 ? 8; sideset=0;
JMP X-- > 0 ? 7; sideset=0;
MOV INVERT ISR <- Y; sideset=0;
PUSH if_full=0, block=0; sideset=0;
SET dest=0, data=0; sideset=0;

Level 3

in_shiftdir: false
out_shiftdir: false
set_base: 29

PULL if_empty=0, block=1; sideset=0;
OUT GPIO (32); sideset=0;
GPIO |> ISR (2); sideset=0;
MOV Y <- ISR; sideset=0;
JMP Y-- > 0 ? 4; sideset=5;
SET dest=0, data=0; sideset=0;
GPIO |> ISR (32); sideset=0;
MOV GPIO <- 0; sideset=0;
PUSH if_full=0, block=1; sideset=10;

level3.json works as follows:

1. Pull one word from TX FIFO.
2. Drive all 32 bits onto GPIO.
3. Read the lower two GPIO bits into ISR.
4. Copy ISR into scratch Y.
5. While Y > 0, loop here, decrementing Y each time.
   Because the instruction has sideset 5, each iteration waits 5 ticks
   (side_en defaults to false, so every instruction outputs its sideset).
6. Clear the lower two GPIO bits (set_base = 29).
7. Read 32 bits from GPIO into ISR.
8. Clear GPIO pins.
9. Push ISR into RX FIFO.

The big difference from previous levels is that share_pins is off, so the receiver cannot directly read transmitter’s GPIO pins.
The transmitter zeroes the two LSBs of every word before sending; those bits affect only the loop length in step 4.
This allows a timing attack: a larger 2‑bit value means the transmitter waits longer before its next Push.

The receiver sets block = 0 on its own Pull and counts cycles while the TX FIFO is empty to recover those two bits.

Since there is no instruction that adds 1, we recycle the trick from level 2: invert, subtract 1 via Jmp X--, then invert again effectively adds 1.

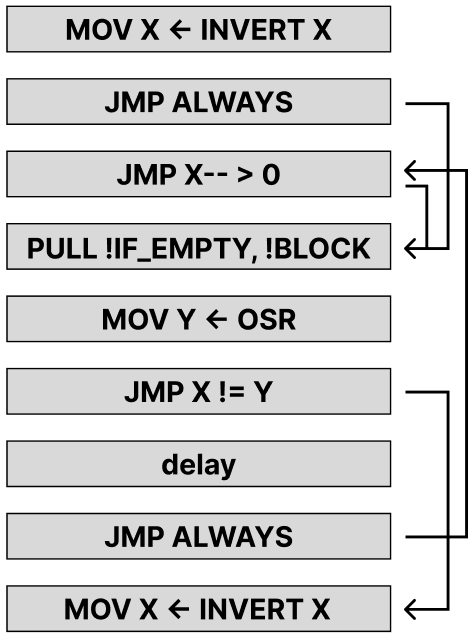

The diagram below shows the flow:

Next we need to recombine the recovered 2 bits with the remaining 30 bits.
Because the level 2’s loop‑counter trick changes the number of executed instructions, we want a reconstruction method whose instruction count is constant.
Using In and Out fits perfectly:

1. Set in_shiftdir = 0 and out_shiftdir = 1.
2. Pull word Y into ISR.
3. Out the lower two bits; ISR now holds Y >> 2.
4. Shift the recovered two bits into ISR with In; ISR becomes
   (Y & ~0b11) | (X & 0b11)—exactly the original word.

The complete receiver for level 3 is:

in_shiftdir: false
out_shiftdir: true

SET dest=1, data=0; sideset=0;
SET dest=2, data=0; sideset=0;
MOV ISR <- X; sideset=0;
MOV OSR <- X; sideset=0;
OUT GPIO (32); sideset=0;
MOV X <- X; sideset=6;

MOV INVERT X <- X; sideset=0;
JMP TRUE ? 9; sideset=0;
JMP X-- > 0 ? 9; sideset=0;
PULL if_empty=0, block=0; sideset=0;
MOV Y <- OSR; sideset=0;
JMP X != Y ? 14; sideset=0;
MOV X <- X; sideset=0;
JMP TRUE ? 8; sideset=0;
MOV INVERT X <- X; sideset=0;

MOV OSR <- Y; sideset=0;
OUT GPIO (2); sideset=0;
MOV ISR <- OSR; sideset=0;
X |> ISR (2); sideset=0;

PUSH if_full=0, block=1; sideset=0;
JMP TRUE ? 0; sideset=0;

Conclusion

You can find the solution script below:

def Jmp(addr: int, mode: int, sideset: int = 0) -> tuple[int, int]:
    return (addr & 0x1F) | (mode << 5), (0 << 5)

def Wait(index: int, source: int, pol: int, sideset: int = 0) -> tuple[int, int]:
    assert source < 4
    assert pol < 2
    return ((index & 0x1F) | (source << 5) | (pol << 7), (1 << 5) | (sideset & 0x1F))

def In(src: int, bitcount: int, sideset: int = 0) -> tuple[int, int]:
    assert src <= 7
    return (src << 5) | (bitcount & 0x1F), (2 << 5) | (sideset & 0x1F)

def Out(dest: int, bitcount: int, sideset: int = 0) -> tuple[int, int]:
    assert dest <= 7
    return (dest << 5) | (bitcount & 0x1F), (3 << 5) | (sideset & 0x1F)

def Pull(if_empty: int, block: int, sideset: int = 0) -> tuple[int, int]:
    assert if_empty < 2 and block < 2
    return (if_empty << 6) | (block << 5) | (1 << 7), (4 << 5) | (sideset & 0x1F)

def Push(if_full: int, block: int, sideset: int = 0) -> tuple[int, int]:
    assert if_full < 2 and block < 2
    return (if_full << 6) | (block << 5), (4 << 5) | (sideset & 0x1F)

def Mov(src: int, cal: int, dest: int, sideset: int = 0) -> tuple[int, int]:
    assert src <= 7
    assert cal <= 3
    assert dest <= 7
    return src | (cal << 3) | (dest << 5), (5 << 5) | (sideset & 0x1F)

def Irq(clr: int, wait: int, index: int, sideset: int = 0) -> tuple[int, int]:
    return (clr << 6) | (wait << 5) | (index & 0x1F), (6 << 5) | (sideset & 0x1F)

def Set(dest: int, data: int, sideset: int = 0) -> tuple[int, int]:
    return (dest << 5) | (data & 0x1F), (7 << 5) | (sideset & 0x1F)

from pwn import *

# r = remote('localhost', 1337)
# r.sendlineafter(b": ", b"ticket{TICKET}")

r = process("./challenge", env={"LD_LIBRARY_PATH":"./lib/"})

inst = [
    *Set(0, 0),
    *Wait(1, 0, 1),
    *Set(1, 15),
    *Set(0, 0),
    *Wait(1, 0, 1),
    *In(0, 1),
    *Jmp(3, 2),
    *Wait(1, 0, 0),
    *Jmp(0, 0),
]
payload_1 = '{"sh":1,"isd":1,"as":1,"ps": 16,'+f'"i":{inst}'+'}'
r.sendlineafter(b"level 1", payload_1.encode())

inst = [
    *Pull(0, 1),
    *Mov(7, 0, 1),
    *Pull(0, 1),
    *Mov(7, 0, 2),

    *Mov(1, 0, 6),
    *Push(0, 0),

    *Mov(2, 1, 2),
    *Jmp(8, 4, 0),
    *Jmp(7, 2, 0),
    *Mov(2, 1, 6),
    *Push(0, 0),
    *Set(0, 0),
]
payload_2 = '{"seb":14,"sh":1,'+f'"i":{inst}'+'}'
r.sendlineafter(b"level 2", payload_2.encode())

inst = [
    *Set(1, 0),
    *Set(2, 0),
    *Mov(1, 0, 6),
    *Mov(1, 0, 7),
    *Out(0, 0),
    *Mov(1, 0, 1, 6),

    *Mov(1, 1, 1),
    *Jmp(9, 0),
    *Jmp(9, 2),
    *Pull(0, 0),
    *Mov(7, 0, 2),
    *Jmp(14, 5, 2),
    *Mov(1, 0, 1),
    *Jmp(8, 0),
    *Mov(1, 1, 1),

    *Mov(2, 0, 7),
    *Out(0, 2),
    *Mov(7, 0, 6),
    *In(1, 2),

    *Push(0, 1),
    *Jmp(0, 0),
]
payload_3 = '{"isd":0,"osd":1,'+f'"i":{inst}'+'}'
r.sendlineafter(b"level 3", payload_3.encode())

r.interactive()
